Vertical ComfortPLENUM Including Two Dampers No Endcap (CPV2-12)

The two zone vertical ComfortPLENUM™ without a bypass damper is 21” x 21” x 4’ long. Installers simply cut a circular hole in the sheet metal using the Cutting Guide decal to choose the size of their hole from 6” to 14” round or rectangular. The Cutting Guide is located on the sheet metal directly in front of the damper. The damper is mounted on the inside of the plenum directly behind the cutting guide. Once the hole is cut and the insulation is trimmed away, the damper blades will be showing. Duct-tab or spin-in starting collars may be installed into the holes. Bypass may be added using another damper installed outside the plenum. This plenum may be used in two zone applications without a damper for bypass. One option is each of two zones may be designed large enough to accommodate all the air through either of the zones when only one is open. Another option is in some two stage applications, the zoning system does not allow the equipment to go into second stage (with high speed fan)unless both zones are open, so no bypass is required. When one zone is open, only low fan is operable.

Contact us with questions

Vertical ComfortPLENUM Including Three Dampers No Endcap (CPV3-123)

This vertical ComfortPLENUM™ has three dampers and is 21” x 21” x 4’ long . Installers simply cut a circular hole in the sheet metal using the Cutting Guide to choose the size of their hole from 6” to 14” round or rectangular. The Cutting Guide is located on the sheet metal directly in front of the damper. The damper is mounted on the inside of the plenum directly behind the cutting guide. Once the hole is cut and the insulation is trimmed away, the damper blades will be showing. Duct-tab or spin-in starting collars may be installed into the holes. Two dampers are placed on each side (as shown). One damper is located in the front or the rear of the plenum. However, the plenum may be rotated so that the ducts coming from the plenum are in a position to avoid framing, maintain better air flow or other reasons that are beneficial to the application. Any one of the three dampers may be used as a bypass damper. This damper modulates to maintain the correct pressure in the plenum.

Contact us with questions

Vertical ComfortPLENUM Including Four Dampers No Endcap (CPV4-1234)



This vertical ComfortPLENUM™ has four dampers and is 21” x 21” x 4’ long Four dampers are placed on each side (as shown). Installers simply cut a circular hole in the sheet metal using the Cutting Guide decal to choose the size of their hole from 6” to 14” round or rectangular. The Cutting Guide is located on the sheet metal directly in front of the damper. The damper is mounted on the inside of the plenum directly behind the cutting guide. Once the hole is cut and the insulation is trimmed away, the damper blades will be showing. Duct-tab or spin-in starting collars may be installed into the holes. Any one of the four dampers may be used as a bypass damper. This damper modulates to maintain the correct pressure in the plenum.

Contact us with questions

Vertical ComfortPLENUM Including Five Dampers No Endcap (CPV5-12345)

This vertical ComfortPLENUM™ has five dampers and is 21” x 21” x 4’ long . Installers simply cut a circular hole in the sheet metal using the Cutting Guide to choose the size of their hole from 6” to 14” round or rectangular. The Cutting Guide is located on the sheet metal directly in front of the damper. The damper is mounted on the inside of the plenum directly behind the cutting guide. Once the hole is cut and the insulation is trimmed away, the damper blades will be showing. Duct-tab or spin-in starting collars may be installed into the holes. Two dampers are placed on one side and the other three are around the top parimeter (as shown). The plenum may be rotated so that the ducts coming from the plenum are in a position to avoid framing, maintain better air flow or other reasons that are beneficial to the application. Any one of the five dampers may be used as a bypass damper. This damper modulates to maintain the correct pressure in the plenum.

Contact us with questions

Vertical ComfortPLENUM Including Six Dampers No Endcap (CPV6-123567)

This vertical ComfortPLENUM™ has six dampers and is 21” x 21” x 4’ long . Installers simply cut a circular hole in the sheet metal using the Cutting Guide to choose the size of their hole from 6” to 14” round or rectangular. The Cutting Guide is located on the sheet metal directly in front of the damper. The damper is mounted on the inside of the plenum directly behind the cutting guide. Once the hole is cut and the insulation is trimmed away, the damper blades will be showing. Duct-tab or spin-in starting collars may be installed into the holes. Two dampers are placed on one side and the other four are around the top parimeter (as shown). The plenum may be rotated so that the ducts coming from the plenum are in a position to avoid framing, maintain better air flow or other reasons that are beneficial to the application. Any one of the five dampers may be used as a bypass damper. This damper modulates to maintain the correct pressure in the plenum.

Contact us with questions

Vertical ComfortPLENUM Including Seven Dampers No Endcap (CPV7-1234567)

This vertical ComfortPLENUM™ has four dampers closest to the endcap with three dampers below the four and is 21” x 21” x 4’ long. Installers simply cut a circular hole in the sheet metal using the Cutting Guide to choose the size of their hole from 6” to 14” round or rectangular. The Cutting Guide is located on the sheet metal in front of the damper that is mounted on the inside of the plenum. Once the hole is cut and the insulation is trimmed away, the damper blades will be showing. Duct tab or spin in starting collars may be installed into the holes. Two dampers are placed on each side and are usually in the left and right position (as shown). One is coming from the front or the rear of the plenum. However, the plenum may be rotated so that the ducts coming from the plenum are in a position to avoid framing, maintain better air flow or other reasons that are beneficial to the application. Any one of the three dampers may be used as a bypass damper. This damper modulates to maintain the correct pressure in the plenum. This assures the correct duct pressure through the damper that is open.

Contact us with questions

Vertical ComfortPLENUM Including Eight Dampers No Endcap (CPV8-12345678)

This vertical ComfortPLENUM™ has eight dampers and is 21” x 21” x 4’ long. Installers simply cut a circular hole in the sheet metal using the Cutting Guide to choose the size of their hole from 6” to 14” round or rectangular. The Cutting Guide is located on the sheet metal in front of the damper that is mounted on the inside of the plenum. Once the hole is cut and the insulation is trimmed away, the damper blades will be showing. Duct tab or spin in starting collars may be installed into the holes. Two dampers are placed on each side (as shown). Any of the dampers may be used as a bypass damper. This damper modulates to maintain the correct pressure in the plenum. This assures the correct duct pressure through the damper that is open.

Contact us with questions

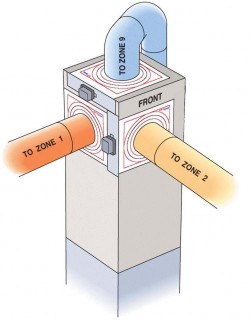

Vertical ComfortPLENUM Including Six Dampers With Endcap (CPV3-129)

This vertical ComfortPLENUM™ has three dampers and is 21” x 21” x 4’ long . Installers simply cut a circular hole in the sheet metal using the Cutting Guide to choose the size of their hole from 6” to 14” round or rectangular. The Cutting Guide is located on the sheet metal directly in front of the damper. The damper is mounted on the inside of the plenum directly behind the cutting guide. Once the hole is cut and the insulation is trimmed away, the damper blades will be showing. Duct-tab or spin-in starting collars may be installed into the holes. Two dampers are placed on the sides (as shown). The plenum may be rotated so that the ducts coming from the plenum are in a position to avoid framing, maintain better air flow or other reasons that are beneficial to the application. Any of the dampers may be used as a bypass damper. However, the endcap damper is usually used for the bypass damper. This damper modulates to maintain the correct pressure in the plenum.

Contact us with questions

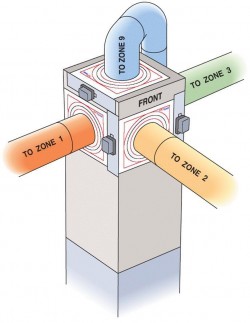

Vertical ComfortPLENUM Including Four Dampers With Endcap (CPV4-1239)

This vertical ComfortPLENUM™ has four dampers and is 21” x 21” x 4’ long . Installers simply cut a circular hole in the sheet metal using the Cutting Guide to choose the size of their hole from 6” to 14” round or rectangular. The Cutting Guide is located on the sheet metal directly in front of the damper. The damper is mounted on the inside of the plenum directly behind the cutting guide. Once the hole is cut and the insulation is trimmed away, the damper blades will be showing. Duct-tab or spin-in starting collars may be installed into the holes. Dampers are placed on each side and are usually in the left and right position (as shown). One damper is located in the front or the rear of the plenum. However, the plenum may be rotated so that the ducts coming from the plenum are in a position to avoid framing, maintain better air flow or other reasons that are beneficial to the application. Any dampers may be used as a bypass damper. However, the endcap damper is usually used for the bypass damper. This damper modulates to maintain the correct pressure in the plenum.

Contact us with questions

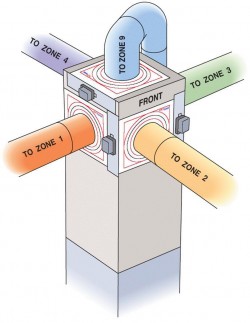

Vertical ComfortPLENUM Including Four Dampers With Endcap (CPV5-12349)

This vertical ComfortPLENUM™ has five dampers and is 21” x 21” x 4’ long . Installers simply cut a circular hole in the sheet metal using the Cutting Guide to choose the size of their hole from 6” to 14” round or rectangular. The Cutting Guide is located on the sheet metal directly in front of the damper. The damper is mounted on the inside of the plenum directly behind the cutting guide. Once the hole is cut and the insulation is trimmed away, the damper blades will be showing. Duct-tab or spin-in starting collars may be installed into the holes. Dampers are placed on all sides (as shown). The plenum may be rotated so that the ducts coming from the plenum are in a position to avoid framing, maintain better air flow or other reasons that are beneficial to the application. Any of the dampers may be used as a bypass damper. However, the endcap damper is usually used for the bypass damper. This damper modulates to maintain the correct pressure in the plenum.

Contact us with questions

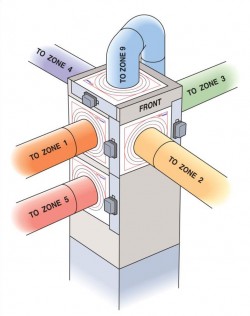

VerticalComfortPLENUM Including Six Dampers (CPV6-123459)

This vertical ComfortPLENUM™ has six dampers and is 21” x 21” x 4’ long . Installers simply cut a circular hole in the sheet metal using the Cutting Guide to choose the size of their hole from 6” to 14” round or rectangular. The Cutting Guide is located on the sheet metal directly in front of the damper. The damper is mounted on the inside of the plenum directly behind the cutting guide. Once the hole is cut and the insulation is trimmed away, the damper blades will be showing. Duct-tab or spin-in starting collars may be installed into the holes. Dampers may be placed on all sides (as shown). The plenum may be rotated so that the ducts coming from the plenum are in a position to avoid framing, maintain better air flow or other reasons that are beneficial to the application. Any of the dampers may be used as a bypass damper. However, the endcap damper is usually used for the bypass damper. This damper modulates to maintain the correct pressure in the plenum.

Contact us with questions

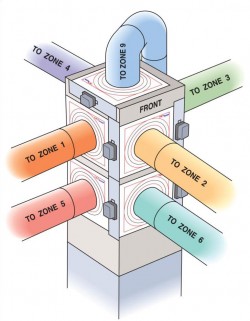

Vertical ComfortPLENUM Including Seven Dampers With Endcap (CPV7-1234569)

This vertical ComfortPLENUM™ has seven dampers and is 21” x 21” x 4’ long . Installers simply cut a circular hole in the sheet metal using the Cutting Guide to choose the size of their hole from 6” to 14” round or rectangular. The Cutting Guide is located on the sheet metal directly in front of the damper. The damper is mounted on the inside of the plenum directly behind the cutting guide. Once the hole is cut and the insulation is trimmed away, the damper blades will be showing. Duct-tab or spin-in starting collars may be installed into the holes. Dampers may be placed on all sides (as shown). The plenum may be rotated so that the ducts coming from the plenum are in a position to avoid framing, maintain better air flow or other reasons that are beneficial to the application. Any of the dampers may be used as a bypass damper. However, the endcap damper is usually used as the bypass damper. This damper modulates to maintain the correct pressure in the plenum.

Contact us with questions

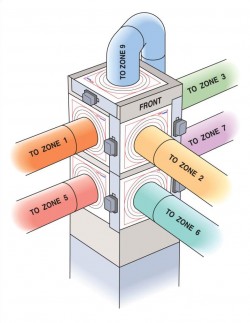

Vertical ComfortPLENUM Including Seven Dampers With Endcap (CPV7-1235679)

This vertical ComfortPLENUM™ has seven dampers and is 21” x 21” x 4’ long . Installers simply cut a circular hole in the sheet metal using the Cutting Guide to choose the size of their hole from 6” to 14” round or rectangular. The Cutting Guide is located on the sheet metal directly in front of the damper. The damper is mounted on the inside of the plenum directly behind the cutting guide. Once the hole is cut and the insulation is trimmed away, the damper blades will be showing. Duct-tab or spin-in starting collars may be installed into the holes. Dampers may be placed on all sides (as shown). The plenum may be rotated so that the ducts coming from the plenum are in a position to avoid framing, maintain better air flow or other reasons that are beneficial to the application. Any of the dampers may be used as a bypass damper. However, the endcap damper is usually used as the bypass damper. This damper modulates to maintain the correct pressure in the plenum.

Contact us with questions

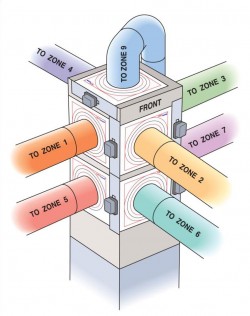

Vertical ComfortPLENUM Including Eight Dampers With Endcap (CPV8-12345679)

This vertical ComfortPLENUM™ has eight dampers and is 21” x 21” x 4’ long . Installers simply cut a circular hole in the sheet metal using the Cutting Guide to choose the size of their hole from 6” to 14” round or rectangular. The Cutting Guide is located on the sheet metal directly in front of the damper. The damper is mounted on the inside of the plenum directly behind the cutting guide. Once the hole is cut and the insulation is trimmed away, the damper blades will be showing. Duct-tab or spin-in starting collars may be installed into the holes. Dampers may be placed on all sides (as shown). The plenum may be rotated so that the ducts coming from the plenum are in a position to avoid framing, maintain better air flow or other reasons that are beneficial to the application. Any of the eight dampers may be used as a bypass damper. However, the endcap damper is usually used as the bypass damper. This damper modulates to maintain the correct pressure in the plenum.

Contact us with questions

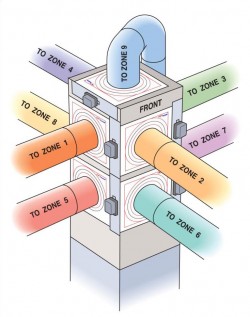

Vertical ComfortPLENUM Including Nine Dampers With Endcap (CPV9-123456789)

This vertical ComfortPLENUM™ has nine dampers and is 21” x 21” x 4’ long . Installers simply cut a circular hole in the sheet metal using the Cutting Guide to choose the size of their hole from 6” to 14” round or rectangular. The Cutting Guide is located on the sheet metal directly in front of the damper. The damper is mounted on the inside of the plenum directly behind the cutting guide. Once the hole is cut and the insulation is trimmed away, the damper blades will be showing. Duct-tab or spin-in starting collars may be installed into the holes. Dampers are placed on all sides (as shown). Any of the dampers may be used as a bypass damper. However, the endcap damper is usually used as the bypass damper. This damper modulates to maintain the correct pressure in the plenum.
