The GE22-NX multi-stage thermostat is designed for use with more complex conventional HVAC systems. The unit can control one (1) two-stage compressor, and one (1) two-stage gas or electric heater.
- Automatic Heat <–> Cool Changeover
- Switchable 2 or 4 Minute Minimum On/Off Time
- Dual Occupied & Unoccupied Set points for Heat and Cool
- Remote Sensor Capability (indoor, return, supply and outdoor)
- Outdoor Temperature Display (requires outdoor sensor or connection to network)
- Keyboard Lockout Feature for commercial applications, includes 1 and 3 Hour Override with +/- 3 Degrees F adjustment during override
Contact us with questions
Related Documents
The HP32-NX heat pump thermostat is designed for use with the more complex heat-pump applications in the market. The unit can control two (2) cooling stages and three (3) heating stages. Typically, the third stage of heat is auxiliary or emergency heat.
- Automatic Heat <–> Cool Changeover
- Switchable 2 or 4 Minute Minimum On/Off Time
- Dual Occupied & Unoccupied Set points for Heat and Cool
- Remote Sensor Capability (indoor, return, supply and outdoor)
- Outdoor Temperature Display (requires outdoor sensor or connection to network)
- Keyboard Lockout Feature for commercial applications, includes 1 and 3 Hour Override with +/- 3 Degrees F adjustment during override
Contact us with questions
Related Documents
The WCM-2 Wireless Coordinator Module connects directly to any of the Net/X Network Controllers using the XBUS. Each WCM-2 coordinates communications with up to thirty-two (32) WBM-1 wireless backplate modules. For extremely long distances or for multiple buildings on the same site, up to four (4) WCM-2’s can be connected up to 1,000’ away with CAT5 cable, all connected to a single Net/X Network Controller, allowing for complete flexibility. (Note: The total number of Net/X thermostats on a Net/X Network Controller remains either 16 or 32, dependent on the controller used). The technology adheres to the IEEE standard 802.15.4 for wireless mesh networks, allowing it to peacefully coexist with Wi-Fi (802.11x) networks in any home or office. The WCM-2 has a line-of-site range of over 3,000 feet to a WBM-1 thermostat module, making the most demanding ‘real world’ installations easy to install.
- LED Display showing wireless system status
- Pushbutton set up for Channel and Network ID selection
- Dynamic, intelligent signal route updates keep the communications solid
- Communicates to Network Controller via the XBUS
- Translucent cover for easy status viewing
- High-gain 2.4GHz mesh-network radio
- Incorporated swivel antenna
- Screwless Terminal Connection
- Screw and DIN rail mounting options included
- Power can be 16VAC or 24VAC supply (including the Network Controller power)
- Can be placed up to 1,000’ from the Network Controller
- Communications and Power can be provided over a single CAT5
Contact us with questions
Related Documents
The WBM-1 and WBM-1a Wireless Backplate Modules are designed to replace the passive backplates of Net/X thermostats. Based on state-of-the-art wireless mesh technology, the backplates work seamlessly with the WCM-1 Wireless Coordinator Module. The integrated RF transceiver offers unmatched performance in a 2.4GHz IEEE 802.15.4 module. With a tested outdoor line of site range of 1000 feet from thermostat to thermostat, the WBM-1 series supplies the power and reliability needed for practically any building. In addition, each thermostat’s RF transceiver acts as a repeater, allowing networks of virtually any size and range.
- Perfect for both new construction and retrofit applications.
- Interchangeable with passive Net/X thermostat backplates
- Standard HVAC thermostat connections match all Net/X thermostats
- Single Pushbutton for Link Coordination with WCM-1
- Link LED with link quality indicator
- Powered from HVAC equipment with standard HVAC cabling
- Integrated F antenna
- IEEE 802.15.4 mesh network compliant
- 2.4GHz spread spectrum technology
- FCC Certified on all 16 channels
- FCC Part 15.247 Class B agency approval
- Industry Canada (IC) approval
Contact us with questions
Related Documents
The NT-IDS connects directly to any Net/X thermostat or to another remote sensor. The NT-IDS allows remote sensing of temperature in the occupied space. Up to six (6) NT-IDS and/or NT-DUCT sensors may be daisy-chained to a single Net/X Thermostat.
- Connects to a Net/X thermostat, NT-IDS, NT-DUCT, NT-ODT or NT-SUPPLY with CAT5 cable
- Automatic Averaging of All Sensors
- No addressing needed
- Input/Output/Power on easy access screw terminals
- Contains a calibrated internal temperature sensor
- Screw terminals included for an alternate external 10K thermistor
- Wires to Net/X thermostat using CAT5 cabling
- Up to 300 feet between sensors
- Measurement range: +24 to +124 degrees F
- Sensor Electronics Module Dimensions: 3.5″ W x 2.5″ H x 0.75″ D
Contact us with questions
Related Documents
The NT-ODT connects directly to any Net/X thermostat. The NT-ODT allows remote sensing of outdoor temperature in the occupied space.
- Connects to a Net/X thermostat, NT-IDS, NT-DUCT, NT-ODT or NT-SUPPLY with CAT5 cable
- No addressing needed
- Input/Output/Power on easy access screw terminals
- Contains a calibrated internal temperature sensor
- Screw terminals included for an alternate external 10K thermistor
- Wires to Net/X thermostat using CAT5 cabling
- Up to 300 feet between sensors
- Measurement range: +24 to +124 degrees F
- Sensor Electronics Module Dimensions: 3.5″ W x 2.5″ H x 0.75″ D
Contact us with questions
Related Documents
The NT-DUCT sensor contains the same electronics as the NT-IDS and it adds an 8″ calibrated stainless steel probe and mounting hardware. This probe is perfect for applications where the fan is running constantly during occupied hours (usually commercial applications). The use of this version of the sensor allows the system to operate reliably while removing the issue of tampering within the space. Up to six (6) NT-IDS and/or NT-DUCT sensors may be daisy-chained to a single Net/X Thermostat.
- Connects to a Net/X thermostat, NT-IDS or NT-DUCT or NT-SUPPLY with CAT5 cable
- Automatic Averaging of All Sensors
- No addressing needed
- Input/Output/Power on easy access screw terminals
- Contains a calibrated internal temperature sensor
- Screw terminals included for an alternate external 10K thermistor
- Wires to Net/X using CAT5 cabling
- Up to 300 feet between sensors
- Measurement range: -22 to +119 degrees F
- Probe – 8″ stainless steel, mounted to a metal single-gang box
- Sensor Electronics Module Dimensions: 3.5″ W x 2.5″ H x 0.75″ D
Contact us with questions
Related Documents
The NT-SUPPLY sensor contains the same electronics as the NT-ODT and it adds an 8″ calibrated stainless steel probe and mounting hardware. This probe is perfect for applications where monitoring the supply air temperature is important (usually commercial applications). The use of this version of the sensor replaces the NT-ODT. NT-ODT sensors can not be connected to the same thermostat as an NT-SUPPLY. Only one (1) NT-SUPPLY can be connected to a Net/X thermostat.
- No addressing needed
- Input/Output/Power on easy access screw terminals
- Contains a calibrated internal temperature sensor
- Screw terminals included for an alternate external 10K thermistor
- Wires to Net/X using CAT5 cabling
- Up to 300 feet between sensors
- Measurement range: -22 to +119 degrees F
- Probe – 8″ stainless steel, mounted to a metal single-gang box
- Sensor Electronics Module Dimensions: 3.5″ W x 2.5″ H x 0.75″ D
Contact us with questions
Related Documents
The Net/X flush mount remote sensor is designed to work in conjunction with the NT-IDS remote sensor module or any other thermostat electronics using a 10K type III thermistor sensing mechanism. One (1) sensor can be connected each NT-IDS, replacing the internal sensor included in the NT-IDS electronics. The NT-FS is a 10K type III thermistor in a special enclosure for mounting in sheetrock or in wood, giving a nearly invisible method of sensing temperature.
- 10K Type III thermistor
- Head approximately the size of a US dime
- Connects directly to NT-IDS screw terminals
- Wires to Net/X sensor module using CAT5 cabling
- Sheet Rock or Wood Mounting
- Up to 100 feet from NT-IDS
- Measurement range: +24 to +124 degrees F
- Sensor Electronics Module Dimensions: 0.75″ Dia x 1 1/8″ Deep
Contact us with questions
Related Documents
The NT-SSA16/CLK has all the power and flexibility needed for many projects. This controller is great for systems that have 16 or fewer Net/X thermostats. The unit has a complete real-time clock and calendar, allowing the Net/X network to become self-sustaining. Using the Net/X Command Center Software, an entire set of schedules can be created within a point-n-click Windows environment and then downloaded into the controller. Once this is done, the PC (or Modem or LAN or Internet) can be disconnected and the controller will run the schedules you entered. The device can handle a power outage of 7 days without you having to worry about resetting the clock. There is room for hundreds of different schedules, allowing complete flexibility for your needs! The NT-SSA16/CLK makes medium-sized HVAC control jobs easier than they’ve ever been before!
- Two RS-232 Serial Ports; one for computer connection, one for LAN or modem connection
- Allows full control of up to 16 thermostats on the controller
- No additional hardware needed at the Net/X thermostat
- Any Net/X thermostat can be up to 1,000′ away; combined total of 4,000′ for all thermostats
- Two (2) XBUS communications ports for up to 2,000′ of cable on each
- Any mix of home-run, daisy-chain or multi-drop wiring can be used; only one pair of a CAT5 cable needed
- Advanced protection circuitry for data inputs/outputs; all input/output/power on removable connectors
- Non-volatile clock/calendar setpoint memory
- Integrated Real-Time Clock/Calendar allows hundreds of scheduled programs
- Dimensions: 3.6″ H x 6.25″ W x 0.875″ D
- 16VAC power transformer included
- Net/X Command Center software included
- PC connection cable included
Contact us with questions
Related Documents
The NT-SSA32/CLK has all the power and flexibility needed for many projects. This controller is great for systems that have 32 or fewer Net/X thermostats. The unit has a complete real-time clock and calendar, allowing the Net/X network to become self-sustaining. Using the Net/X Command Center Software, an entire set of schedules can be created within a point-n-click Windows environment and then downloaded into the controller. Once this is done, the PC (or Modem or LAN or Internet) can be disconnected and the controller will run the schedules you entered. The device can handle a power outage of 7 days without you having to worry about resetting the clock. There is room for hundreds of different schedules, allowing complete flexibility for your needs! The NT-SSA32/CLK makes medium-sized HVAC control jobs easier than they’ve ever been before!
- Two RS-232 Serial Ports; one for computer connection, one for LAN or modem connection
- Allows full control of up to 32 thermostats on the controller
- No additional hardware needed at the Net/X thermostat
- Any Net/X thermostat can be up to 1,000′ away; combined total of 4,000′ for all thermostats
- Two (2) XBUS communications ports for up to 2,000′ of cable on each
- Any mix of home-run, daisy-chain or multi-drop wiring can be used; only one pair of a CAT5 cable needed
- Advanced protection circuitry for data inputs/outputs; all input/output/power on removable connectors
- Non-volatile clock/calendar setpoint memory
- Integrated Real-Time Clock/Calendar allows hundreds of scheduled programs
- Dimensions: 3.6″ H x 6.25″ W x 0.875″ D
- 16VAC power transformer included
- Net/X Command Center software included
- PC connection cable included
Contact us with questions
Related Documents
The NT-IP232 is a complete Local Area Network adapter designed to work any of the Net/X™ system controllers. The NT-IP232 includes all of the necessary intelligence to enable Plug-n-Play capability between any 10BaseT LAN and any Net/X™ Thermostat network. The NT-IP232 allows simple integration with any Net/X™ Network and a personal computer. One RS-232C and one 10BaseT port is included with the adapter for complete versatility of environments. The unit ships complete with a power supply, a 10BaseT LAN Ethernet cable, and a 9-9 pin serial cable. With the built-in web server and IP address display, installation and set-up takes only minutes to complete. Using this interface, any Net/X network can be accessed over any LAN and over the Internet.
- One (1) RS-232 Serial Port with a DB-9 female connector
- One (10 Ethernet Port with an RJ-45 jack
- 9-9 pin Serial cable Included
- Ethernet Patch Cable Included
- Built-In Display showing Complete IP Address
- Separate 5VDC Power Supply Included
- Built-In Web Browser for Fast and Easy Configuration
- DHCP LAN and Static IP Configurations
- Full TCP/IP Addressing Allowed for Connection to Networks of Any Size
- Telnet Configuration Option
Contact us with questions
Related Documents
Terminal board mounted in a plastic case is a simple way to connect as many as 8 thermostats to the wired network. The enclosure has a clear cover that enables service people a view to the connecting wires without even removing the cover. Each board will accommodate 24 volt AC power wire as well as X1 and X2 communications wire. Each terminal connection is screwless and will allow wires to be remove by pressing the orange release button.
Contact us with questions
Terminal board mounted on snap track is a simple way to connect as many as 8 thermostats to the wired network. Each board will accommodate 24 volt AC power wire as well as X1 and X2 communications wire. Each terminal connection is screwless and will allow wires to be remove by pressing the orange release button.
Contact us with questions
The Net/X Command Center software is at the heart of our simplicity for set up and operation of the Net/X network thermostat systems for end users on Windows-based personal computers or servers. Whether you’re using the software locally (within your location) or as an IP thermostat over the Internet, simple point and click capabilities allow you all the ease of use and flexibility you desire to manage your HVAC from anywhere in the world. Monitor thermostats, make changes ‘on the fly’ for temporary settings, create and copy schedules, set alarms, and log and graph historical operation data. This simple power allows you the ability to control your energy consumption and remain comfortable at the same time.

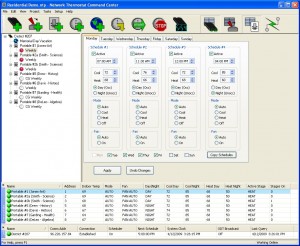

Schedule Window
- create and store user-defined thermostat or relay schedules
- any thermostat schedule can be copied to individual or group of thermostats
- schedules can be defined as local (single thermostat) or global (all thermostats connected to a single network controller)
- scheduling types:
- 2-event weekly recurring – set time and all modes of operation for up to 2 events for each day of the week
- 4-event weekly recurring – set time and all modes of operation for up to 4 events for each day of the week
- 6-event weekly recurring – set time and all modes of operation for up to 6 events for each day of the week
- Run Once – set time and date for all modes for operation for a one-time single event
- Vacation – set time and date for all modes of operation for holding all schedules for an extended period
Single Thermostat Window
- monitor and control any single network thermostat attached to the network controller
- 32-character name thermostat description
- create and store user-defined thermostat operating parameters to disk for later recall
- user-defined thermostat address, min/max setpoint values, outdoor sensor names, outdoor sensor broadcast, LED names, Override status indicator
- allows association of any quantity of generic schedules to a thermostat
Project Window
- create, group and store multiple controllers into a single project
- view and change all controller connection parameters
- manage schedule downloads and real-time clock synchronization
- view all thermostats and or relays from the project window
- expand and collapse the entire project tree
- right-click functions to update thermostats, schedules and relays
General Software Requirements
- Compatible with all Windows releases since 2000
- Monitor resolution – 1024 x 768 or higher
- 10MB available hard disk storage
Contact us with questions
