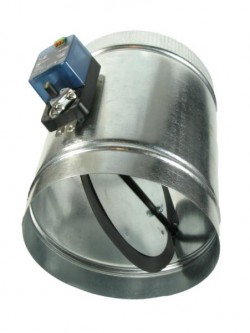

Round dampers are power open/power close. Motor has red and green LED’s that indicate damper position as well as when motor is moving and in what direction. Screwless connections are reliable and easy to use. Each motor allows adjustment of the minimum close position and the maximum open position. The gasketed edge on the blade furnishes a 99% shut off. The ½” shaft is made of solid PVC so as to retard water condensation around the motor. Two bolts with neoprene nuts attach the damper blade to the ½” shaft to insure reliable operation.
Contact us with questions
Related Documents
Spiral construction insures roundness and strength. This damper powers open and springs closed. This guarantees a closed damper on a loss of power. The insulated hat section retards condensation around the motor. Screwless connections are reliable and easy to use. LED indicates when the motor is powered.
Contact us with questions
Related Documents
Rectangular dampers are designed to hold duct dimensions when mounted inside rectangular duct using extruded aluminum frame and mitered corners with L brackets. The motor is power open/power close. Motor has red and green LED’s that indicate damper position as well as when motor is moving and in what direction. Screw-less connections are reliable and easy to use. Each motor allows adjustment of the minimum close position and the maximum open position. Blades are gear driven for reliability and oppose each other as they close. Available in side mount or bottom mount applications.
Contact us with questions
Related Documents
Round bypass damper is designed to relieve air pressure when less than all zones are open. The 8” bolt with weight is screwed into a threaded donut that is mounted around end of the damper shaft. The damper can be mounted in the vertical or horizontal position by rotating the donut and tightening the weighted arm in the correct position.
Contact us with questions
Related Documents
The round modulating bypass damper consists of a power open/power close damper operated by a static pressure switch. The switch is a 24 volt operator that will make a circuit to close the damper on a fall in pressure or make a circuit to open the damper on a rise in pressure. The pitot tube is provided so as to extract a pressure measurement from inside the supply plenum. This pressure is reported to the high side of the pressure diaphragm. The other side is left open to the atmosphere. A set screw allows adjustment to balance the pressure and maintain the damper closure when all zones are open. When zones close and pressure is increased, the static pressure controller instructs the bypass damper to open to maintain the correct pressure in the plenum.
Contact us with questions
Related Documents
The switch is a 24 volt operator that will make a circuit to close the damper on a fall in pressure or make a circuit to open the damper on a rise in pressure. The pitot tube is provided so as to extract a pressure measurement from inside the supply plenum. This pressure is reported to the high side of the pressure diaphragm. The other side is left open to the atmosphere. A set screw allows adjustment to balance the pressure and maintain the damper closure when all zones are open. When zones close and pressure is increased, the static pressure controller instructs the bypass damper to open to maintain the correct pressure in the plenum.
